PVC/UPVC Pipe Extrusion Line | High-Speed Single-Cavity Manufacturing System

Model:
Availability:
Quantity:
Optimize your pipe production with our PVC/UPVC Extrusion Line – a high-speed, customizable solution for agricultural, construction, and cable conduits. Features vacuum calibration and multi-claw haul-off.
  • PVC

  • Chenxing

Product Description

Single Cavity PVC Pipe Extrusion Line | CE-Certified 300-800kg/h Production System


The PVC/UPVC Pipe Extrusion Line (Single Cavity) is a high-efficiency industrial system engineered for producing agricultural, construction, and cable-laying PVC/UPVC pipes with diameters up to 630mm. Equipped with a conical twin-screw extruder, vacuum calibration tank, and adjustable multi-claw haul-off (2-12 claws), this line ensures precision in pipe forming and wall thickness control. Featuring imported AC frequency control devices and options for saw-blade or planetary cutting, it supports seamless production of standard and specialty pipes like spiral silencing pipes and core-foaming pipes. With cooling water capacity up to 12m³/h and 0.6Mpa compressed air, this single-cavity extrusion line delivers unmatched reliability for large-scale UPVC pipe manufacturing, tailored to meet diverse industrial demands.


Technical Parameters

ItemPVC63PVC160PVC250PVC315PVC450PVC630
Pipe dia.(mm)16-6375-160125-250180-315200-450355-630
Vacuum tank length(m)666999
Pressure of vacuum0.03-0.80
Max hauling force(N)100001500020000250003000050000
Hauling speed(m/min/max)1064321.4
Refilled water volume (m3/h)5678912
Production Line
length(m)
202230303642


Remarks: all information above is only for refererence; please gather the exact data by contacting us.

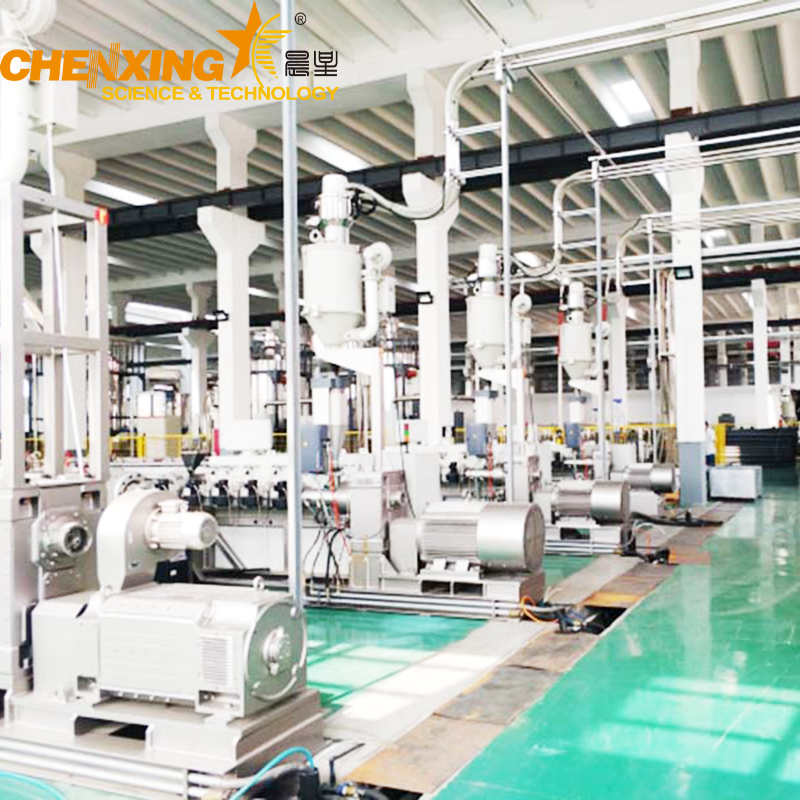

Detailed Photos

FAQ

FAQs
  • What pipe diameters can this extrusion line handle?
    Created with Sketch.
    形状 Created with Sketch.
    The line supports diameters from Ø110mm to Ø630mm, ideal for agricultural irrigation, construction drainage, and cable conduits.
  • How does the vacuum calibration system enhance pipe quality?
    Created with Sketch.
    形状 Created with Sketch.
    The vacuum calibration tank ensures uniform wall thickness and smooth surface finish, critical for high-pressure applications and leak-proof performance.
  • Can this line produce specialty pipes like spiral silencing pipes?
    Created with Sketch.
    形状 Created with Sketch.
    Yes. The line is fully customizable for spiral silencing pipes and core-foaming pipes, tailored to meet specific noise reduction or insulation requirements.
  • What are the advantages of a multi-claw haul-off system?
    Created with Sketch.
    形状 Created with Sketch.
    The adjustable multi-claw haul-off (2-12 claws) provides precise traction control, minimizing slippage and deformation during high-speed extrusion processes.
