Pellet Vacuum Loader for Extruder Machines | Stainless Steel Granule Conveyor by Chenxing

Availability:
Quantity:
Chenxing’s pellet vacuum loader: automated, low-vacuum feeding system for extruders. 100-1000kg/h capacity, stainless steel, microcomputer controls.
  • ZJ

  • Chenxing

Product Description

The Pellet Vacuum Loader by Chenxing Machinery is a low-vacuum industrial conveyor designed for automated resin pellet transfer in extrusion and injection molding processes. Utilizing high-speed airflow technology, this stainless steel vacuum loader delivers capacities up to 1000kg/h (ZJ1000 model) with minimal energy consumption (1.1-5.5kW). Key features include microcomputer controls, overload alarms, and reverse cleaning for dust-free granule feeding. Compatible with hopper dryers, Chenxing’s automatic resin conveyor ensures seamless integration into production lines, reducing labor costs and enhancing efficiency for industries like plastics, packaging, and automotive manufacturing.

Product Parameters

Model

ZJ100ZJ200ZJ400ZJ600ZJ1000
Max. wind pressure  (pa)

98009800130001400016000
Max. air. volume  (m3/min)

222.83.44.5
Motor Power  (kw)

1.11.11.52.25.5
Rotating  speed  of  motor  (r/min)

2800



Transport  capacity(kg/h)Transport  distance  (m)51002004006001000


10       -150300450700


15       -       -       -360500
Aspirating  charging  door  volume  (L)

510152025
Internal  diameter  of  transfer  soft  pipe  (mm)

4040405050
Internal  diameter  of  aspirating  soft  pipe  (mm)

4040505060
Weight  (kg)

607590100130

Remarks: all information above is only for reference; please gather the exact data by contacting us.


Detailed Photos

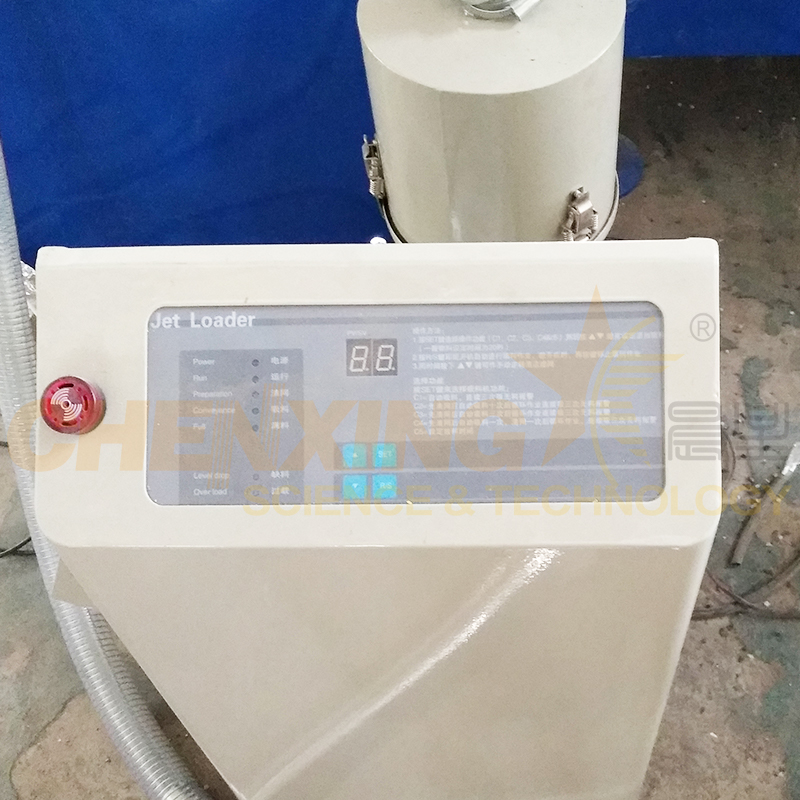

Stainless Steel Granule Feeding System with Microcomputer Control

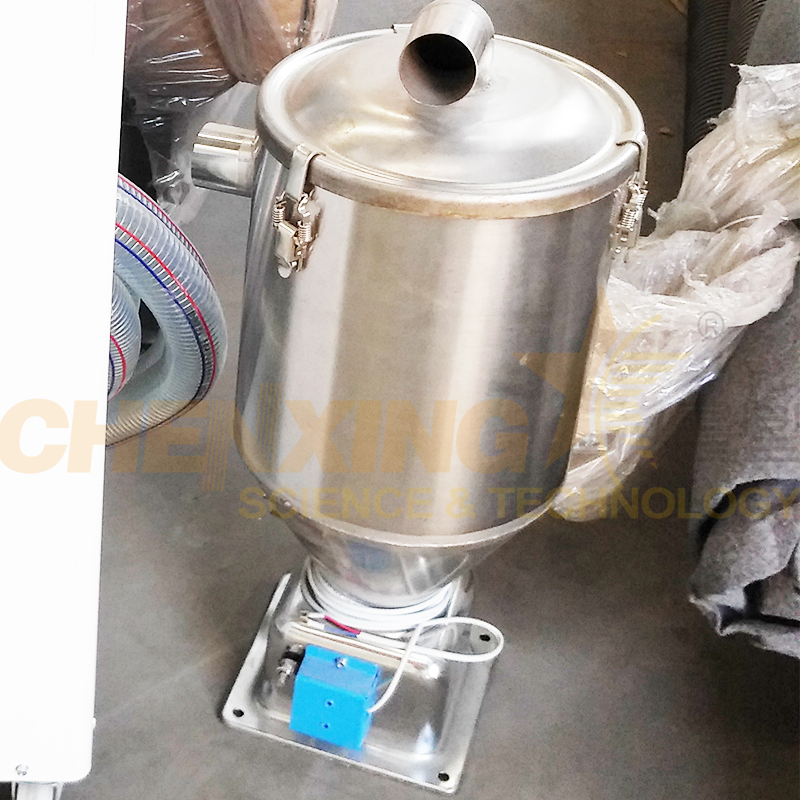

Low-Vacuum Airflow Technology for Resin Pellet Transfer

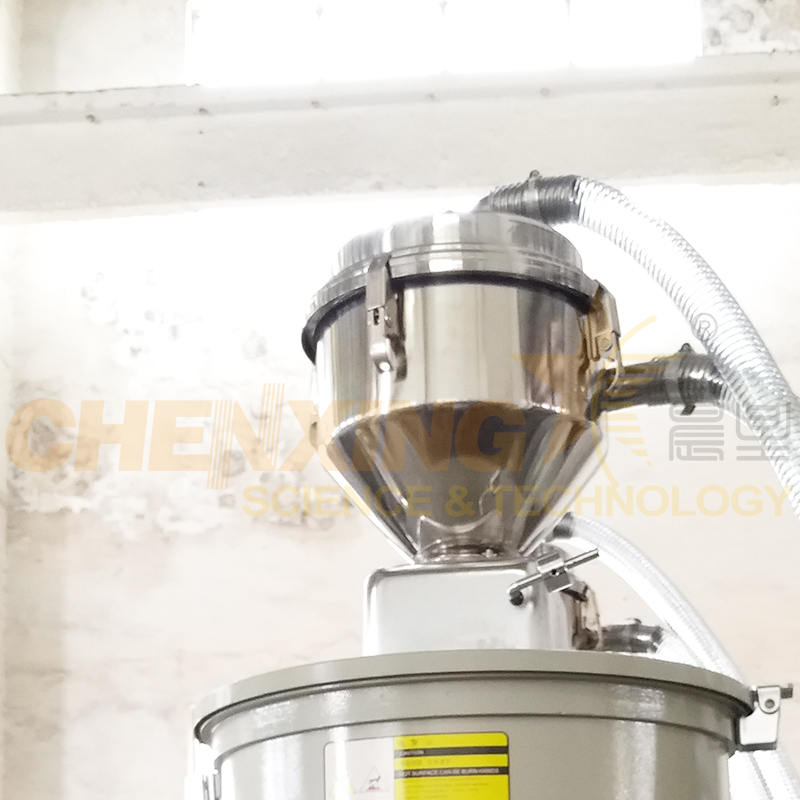

Industrial Vacuum Conveyor Integrated with Hopper Dryer


Reverse Cleaning System in Chenxing Vacuum Loader



FAQ

FAQs
  • What materials can this vacuum loader handle?
    Created with Sketch.
    形状 Created with Sketch.
    It is optimized for resin pellets (PP, PE, PVC), granules, and dry powders in industrial applications.
  • How does the low-vacuum system improve efficiency?
    Created with Sketch.
    形状 Created with Sketch.
    The low-vacuum design minimizes energy consumption while maintaining high-speed pellet transfer (up to 16000pa pressure).
  • What is the maximum transport distance?
    Created with Sketch.
    形状 Created with Sketch.
    The ZJ1000 model supports up to 15m distance with 500kg/h capacity, depending on material density.

  • Can it integrate with existing hopper dryers?
    Created with Sketch.
    形状 Created with Sketch.
    Yes. The loader is designed for seamless compatibility with standard drying systems.
